Horizontal-Vertical Combined Head Faceting Machine

Horizontal-Vertical Combined Head Faceting Machine

https://rajmachinetools.odoo.com/web/image/product.template/4/image_1920?unique=de02f8d

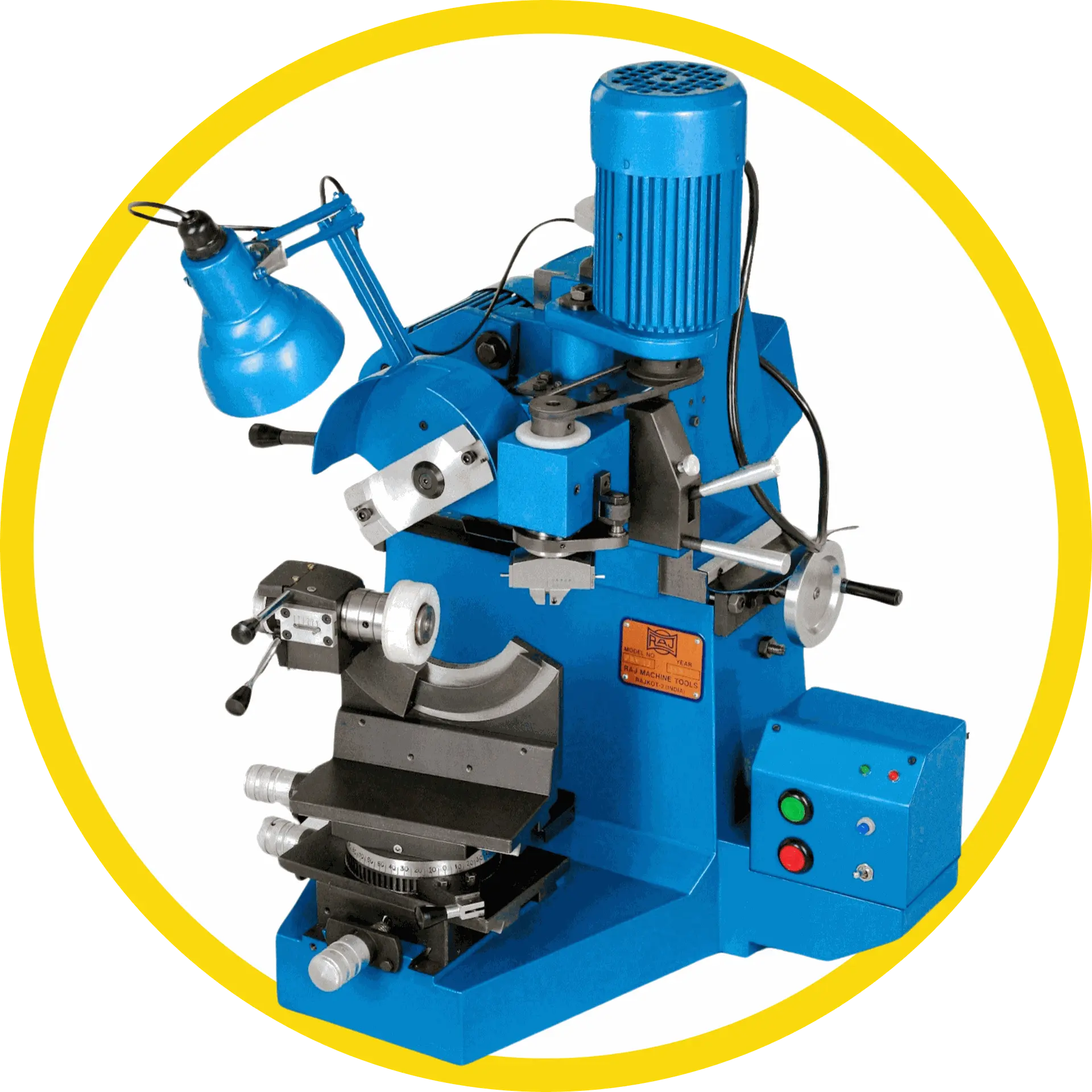

Double-Head Horizontal Vertical Combine Head Faceting Machine. (Model FHV13)

Rs. 122,500.00 122500.0 INR Rs. 122,500.00 Tax Excluded

Rs. 122,500.00 Tax Excluded

Not Available For Sale

This combination does not exist.

*Kindly Read Product Details Below And Contact Us.

Contact Us

Share

Model Type: FHV13 This Horizontal And Vertical Spindle Universal Double Head Faceting Machine uses for it's finest Line and Round (Bindi) cutting and faceting in form of any Line Art, Curves, Circular cut, infinite Curvature Decoration on Bangles, Rings, Pendants, Ear Tops, Ear Rings, Ball & Beads, Chains, Payals, Watch Case and all side faces & outside faces of Jewelry Articles. Articles which is made of Gold and Silver as well as Brass, Aluminum and Imitation Jewelry. (Any Non-Ferrous Metals). A very uniquely compact design is suitable for Perfect Mirror Polish cutting with Diamond and Carbide tool on Job piece.

⇨ Built in Induction Motor: Single Phase, 50 Hz, 230 V, 2800 Rpm. 2 Pc(s)

⇨ Built in Machine Lamp Holder (Bulb not included).

⇨ Attached Horizontal Tool Holder = 1 Pc(s)

⇨ Necessary Tool Kit.

⇨ Bangle Mandrel With Collates (Size 2 inch to 3 inch) = 1 Set(s)

⇨ Ring Mandrill With Collates (Size 12.4mm to 24mm) = 1 Set(s)

⇨ Ear Tops Holder With Stud 1Pc And Collates 5 Pcs = 1 Set(s)

⇨ Ball And Pipe Attachment 1Pc, Holder 1Pc, Pin 2Pcs = 1 Set(s)

⇨ Surface Collate = 1 Set(s)

⇨ Chain Cutting Attachments = 1 Set(s)

⇨ Versatile Machine for Face And Outside Cutting on Bangles, Rings and Other Articles.

⇨ Rotary Table: 180° rotative with 5° Graduation helps in Cutting on Bangles, Ring and Other Articles.

⇨ Dividing Head: A Guide way which is Radial type Dividing Head from 0° to 90° Tilting Device, at One Center and Level

⇨ Manual Interchanging of Horizontal and Vertical Heads, Works Individually.

⇨ Both Heads are works on single center.

⇨ 120 Ratchet Teeth Gear for up to 120 Divisions.

⇨ 1 to 6 Teeth Selector for quick selecting of various Divisions.

  • 240 Ratchet Teeth with 1 to 12 Teeth Selector Available (Sold Separately)

⇨ Inbuilt Electro-Magnetic Brake.

⇨ Machine Dimensions: 60 Centimeter x 52 Centimeter x 77 Centimeter

⇨ Wooden Box Package Dimensions: 65 Centimeter x 65 Centimeter x 80 Centimeter

⇨ Machine Weight = 115 Kilograms Apx.

⇨ Wooden Box Package Weight = 155 Kilograms Apx.
